    Auto Transmission Zero Emission 30 Seater Coaster Bus With DANA Axle

    Ask Lasest Price
    Brand Name : ZEVAUTO
    Model Number : CDL6606LRBEV
    Certification : ISO
    Supply Ability : 25000 units/per year
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    Auto Transmission Zero Emission 30 Seater Coaster Bus With DANA Axle

    Zero Emission 8M Electric Coaster Buses Small Electric Passenger Bus.


    This is an upgrade version with bigger battery capacity and passenger capacity


    Specs


    Overall specsPassenger capacity24-32 seatsMotor specsManufacturerZEV
    Vehicle size (mm)8045*2185*2750ModelZEV
    Wheel base (mm)4500PositionRear
    Front/Rear overhang1135/2410Motor typePMSM
    Front/Rear tread1870/1650Max.power(kw/rpm)180
    Approach/Departure(º)17/9Max. torque (N.m/rpm)2000
    Max. Grade-ability(%)≥20%Displacement(L)--
    Top speed (km/h)100km/hFuelElectric
    Curb weight (kg)5800Emission--
    Gross weight (kg)9000
    Battery114.5 kwh,LiFePo4
    Cruising range≥200km
    Charging TimeWithin 2 hours
    ItemSpecsRemarks
    ChassisFront axleDANA
    Rear axleDANA
    TransmissionAuto transmission
    SuspensionLeaf spring
    SteeringIntegral power steering
    BrakingFront disc and rear drum ; dual circuit air brake, WABCO ABS, slack adjuster
    Tyre215/75R17.5 steel rim Tubeless radial tire
    BatteryMaintenance-free type
    electronicsAC18000kcal/h
    Defrosteryes
    InstrumentBus instrument, English system
    Audio-systemMP5 TV
    LightsFront and rear combination light. Fog light.
    Monitoring systemCCTV system with 5 cameras
    Bus facilitiesBodySemi-loaded
    Passenger doorFront aluminum door
    WindowSliding side window, laminated front windscreen and tempered rear-shield

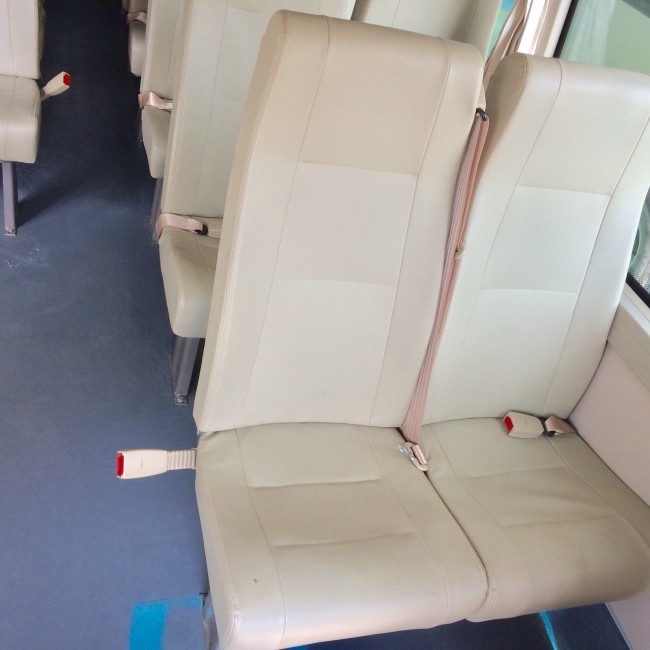

    Passenger seat18 artificial leather passenger seats
    InteriorPVC duct, PVC composite side plate.
    Floor and floor coverPVC floor, anti-slippery, flame retardant leather
    PaintSolid paint
    OthersSafety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in engine cabin,USB connector at driver area,travel record with GPS

    Pictures for reference
    Auto Transmission Zero Emission 30 Seater Coaster Bus With DANA AxleAuto Transmission Zero Emission 30 Seater Coaster Bus With DANA AxleAuto Transmission Zero Emission 30 Seater Coaster Bus With DANA Axle
    FAQ:

    Q: Who we are?

    A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.


    Q: What can we offer?

    A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.

    2. Buses and coaches CBU, KD kit, Chassis and Body frames

    3. Spare parts including various charger for EV


    Q: Do you accept customized service?
    A: Yes. We can offer customized service according to your requirements .


    Q: What’s the delivery time?

    A: Normally 20-35 workdays.


    Q: Why choose us?

    A: We guarantee professional service, competitive price with high quality vehicles.
