    7 Meter 24 Seater AC Bus Electric Public Bus Cruising Range 250km

    Ask Lasest Price
    Brand Name : ZEVAUTO
    Model Number : CDL6700URBEV
    Certification : ISO, PNS Class 2
    Payment Terms : T/T
    Supply Ability : 25000 units/per year
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    7 Meter 24 Seater AC Bus Electric Public Bus Cruising Range 250km

    7 Meter 24 Seats Electric City Bus Cruising Range Over 250km


    Description:


    It adopts high-efficiency permanent magnet synchronous electric drive system and lithium iron phosphate power battery, which has the advantages of safety, reliability, high efficiency and energy saving, and intelligent control.Through the intelligent management of vehicle control, motor drive, and energy management,as well as the precise optimization of control strategies, the vehicle's power, economy and comfort can reach the best balance.


    Specs

    Overall specsPassenger capacity45 (23+1 seats)Motor specsManufacturerZEV
    Vehicle size (mm)6980*2200*3000ModelZEV
    Wheel base (mm)3650Positionrear
    Front/Rear overhang1755/1575Motor typePMSM
    Front/Rear tread1865/1600Max.power(kw)100
    Approach/Departure(º)12/13Max. torque (N.m)1000
    Max. Grade-ability(%)≥15%Displacement(L)--
    Top speed (km/h)69km/hFuelElectric
    Curb weight (kg)5800Emission--
    Gross weight (kg)8500
    Battery134.4 kwh,LiFePo4
    Cruising range≥250km
    Charging timeWithin 2h
    ItemSpecsRemarks
    ChassisFront axleDANA
    Rear axleDANA
    TransmissionAuto transmission
    SuspensionLeaf spring
    SteeringIntegral power steering
    BrakingFront disc and rear drum ; dual circuit air brake, ABS,slack adjuster
    Tyre215/75R17.5 steel rim Tubeless radial tire
    BatteryMaintenance-free type
    electronicsAC13000kcal/h,Single-cold air conditioning
    DefrosterNatural air blow type
    InstrumentCAN Bus Line
    Audio-systemMP5
    LightsFront and rear combination light. Fog light. LED through type inner dome light, step light.
    Monitoring systemCCTV system with 5 cameras, 7 inch screen
    Route boardFront LED type
    Bus facilitiesBody2-step entrance
    Passenger doorFront aluminum inner swing door
    WindowSliding side window, laminated front windscreen and tempered rear-shield
    Passenger seat23 plastic city bus seats
    Interior

    PVC duct, PVC composite side plate.

    Punched aluminum-plastic roof plate.

    Floor and floor coverPVC floor, anti-slippery, flame retardant leather
    PaintSolid paint
    OthersStation broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area,wire connector for Payment machine,WIFI, Travelling record with GPS

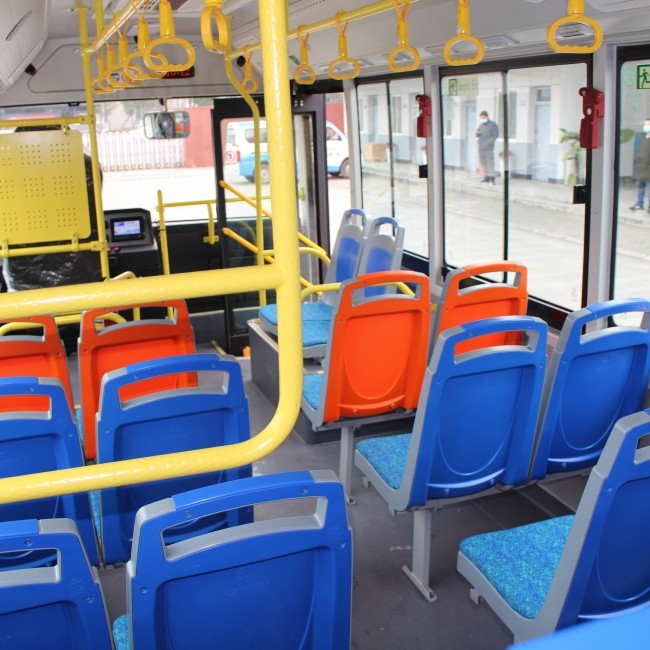

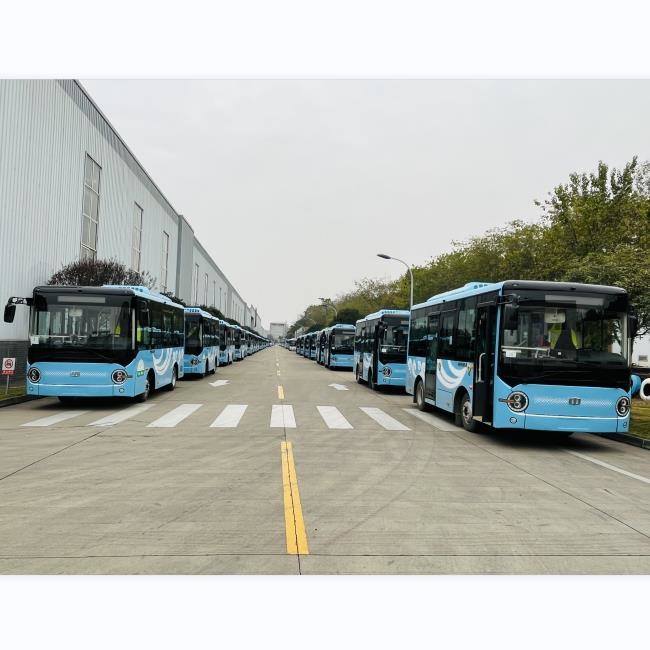

    Pictures for reference

    7 Meter 24 Seater AC Bus Electric Public Bus Cruising Range 250km7 Meter 24 Seater AC Bus Electric Public Bus Cruising Range 250km7 Meter 24 Seater AC Bus Electric Public Bus Cruising Range 250km
    Optional Aluminum Body Bus
    High Efficiency:
    Better cabin space usage
    Passenger capacity is bigger at around 30%
    Lighter Vehicle Weight:
    Welding points reduce at 40%
    Anti-corrosion
    Body reuse
    Comfortable Experience:
    Low energy consumption
    Low noise
    Easy maintenance
    FAQ:

    Q: Who we are?

    A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.


    Q: What can we offer?

    A: 1. As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.

    • Buses and coaches CBU, KD kit, Chassis and Body frames
    • Spare parts including various charger for EV

    Q: Do you accept customized service?
    A: Yes. We can offer customized service according to your requirements .


    Q: What’s the delivery time?

    A: Normally 20-35 workdays.


    Q: Why choose us?

    A: We guarantee professional service, competitive price with high quality vehicles.
