    LHD Long Distance Electric City Bus SKD Assembly Project

    Ask Lasest Price
    Brand Name : ZEVAUTO
    Model Number : CDL6121URBEV
    Certification : ISO
    Payment Terms : T/T
    Supply Ability : 25000 units/per year
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    LHD Long Distance Electric City Bus SKD Assembly Project

    12m Low Entrance Floor Pure Electric City Bus Long Distance For SKD Assembly Project


    This model adapts low floor stepping, convenient for passenger flow. High voltage electric control components are placed in the rear cabin. Electric air compressor, steering assist pump are placed behind the rear wheel. AC installed on the middle roof, 4 battery packs are placed on the front part of bus roof to adjust axle loading distribution so that balance wearing of front and rear tyre


    Specification


    Overall specsPassenger capacity94/22-46 seatsMotor specsManufacturerZEV
    Vehicle size (mm)12000*2550*3225Model--
    Wheel base (mm)6200Positionrear
    Front/Rear overhang2700/3100Engine type--
    Front/Rear tread2119/1887Max.power(kw/rpm)240
    Approach/Departure(º)8/8Max. torque (N.m/rpm)2800
    Max. Grade-ability(%)15%Displacement(L)--
    Top speed (km/h)69km/hFuleElectric
    Curb weight (kg)11800Emission--
    Gross weight (kg)18000
    Battery350.07 kwh,LiFePo4, water cool. with monitoring system.
    Charging holder

    Single or Double optional.

    Full charging 3.1h single / 1.6h double

    Driving range280-650km
    ItemSpecsRemarks
    ChassisFront axle7.5T
    Rear axle13T
    TransmissionAuto transmission
    Suspension

    Import air suspension, SACHS shock absorber

    ECAS

    SteeringBOSCH 8098 steering
    BrakingKNORR brake system, disc brake and maintenance free
    Tyre275/70R22.5 aluminum rim
    BatteryMaintenance-free type 2*195Ah
    electronicsAC32000kcal/h with air purifier
    DefrosterElectric heater , 4 PTC radiator
    InstrumentCAN BUS LINE. LCD instrument
    Audio-system2 pcs LCD display
    LightsLED combination lights
    Monitoring systemCCTV system with 10 cameras
    Route boardFront, rear and side LCD screen
    Driver assistance system

    ADAS HSA

    EPB ASR

    ESC CBS

    AEBS AutoHold

    Bus facilitiesBodyElectro coating.
    Passenger doorFront aluminum inner swing door
    WindowSliding side window, laminated front windscreen and tempered rear-shield
    Passenger seat28 plastic city bus seats with cushion
    Interioraluminum-plastic
    Floor and floor coverPVC floor, anti-slippery, flame retardant leather
    PaintSolid paint
    OthersStation broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area, Travelling record with GPS

    Pictures for reference

    LHD Long Distance Electric City Bus SKD Assembly Project


    User-friendly interface and floating buttons.

    LHD Long Distance Electric City Bus SKD Assembly Project

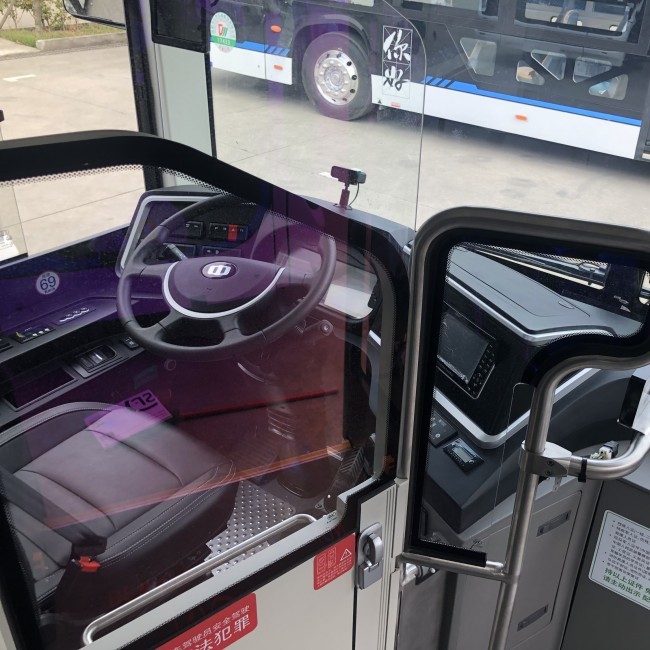

    Separation door with eco-friendly materials prevents the driver from disturbance while driving.


    LHD Long Distance Electric City Bus SKD Assembly Project

    Optional Aluminum Body Bus
    High Efficiency:
    Better cabin space usage
    Passenger capacity is bigger at around 30%
    Lighter Vehicle Weight:
    Welding points reduce at 40%
    Anti-corrosion
    Body reuse
    Comfortable Experience:
    Low energy consumption
    Low noise
    Easy maintenance
    FAQ:

    Q: Who we are?

    A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.


    Q: What can we offer?

    A:

    • As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
    • Buses and coaches CBU, KD kit, Chassis and Body frames
    • Spare parts including various charger for EV

    Q: Do you accept customized service?
    A: Yes. We can offer customized service according to your requirements .


    Q: What’s the delivery time?

    A: Normally 20-35 workdays.


    Q: Why choose us?

    A: We guarantee professional service, competitive price with high quality vehicles.
